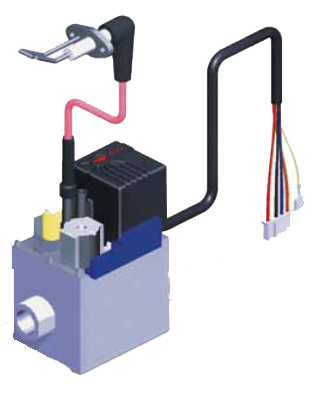

Top Mounted Valve Igniter

Development of capacitance discharge igniters to be mounted directly on the gas valve’s top. This igniter is been studied for the application on wall hang boilers where the spaces are narrow and the wiring harness need to be simplified. The transformer can drive the solenoid valves directly or with an inner DC converter. Only one wire is connected with the control device providing Ignition power, flame signal and valve driving power. The output wire is used both for ignition and flame detection with single electrode. Different version are available to be fitted on each valve.
